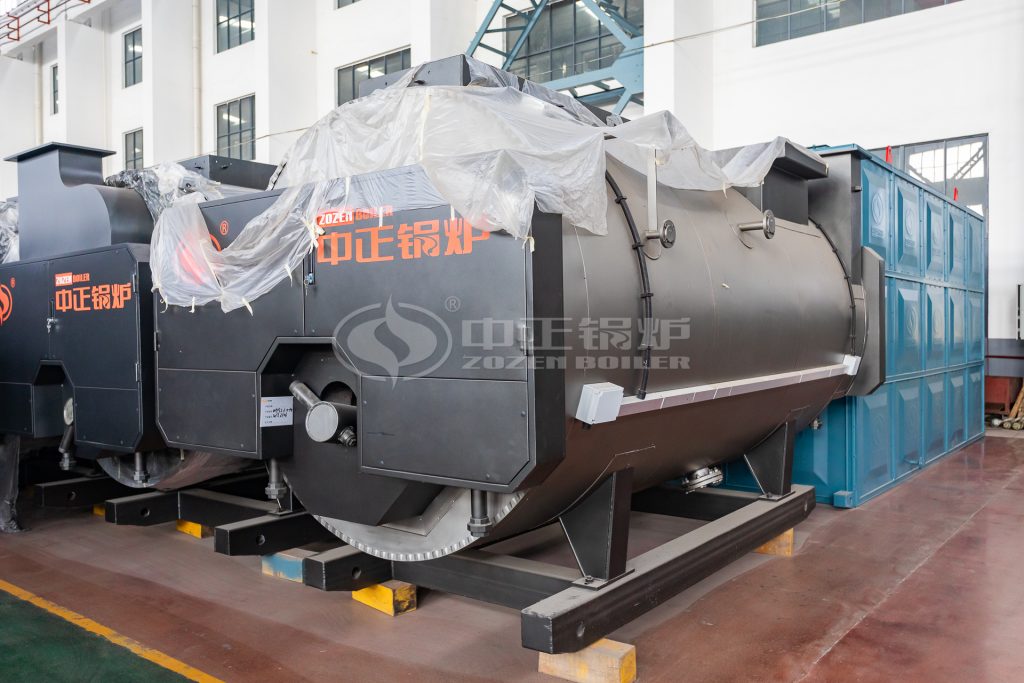

WNS Series Three Pass Fire Tube Boiler

ZOZEN WNS Series Three Pass Fire Tube Boiler

Product thermal capacity:	1-20 t/h
Working pressure:	0.7-2 MPa
Available fuel:	Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc.
Available industries:	Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc.

Introduction of WNS Series Three Pass Fire Tube Boiler

The WNS series three pass fire tube boiler features a classic three-pass design, where hot flue gas circulates through the furnace and smoke tubes three times. This design, combined with an optimized heat transfer surface structure, significantly improves thermal efficiency, achieving up to 98% or higher. The furnace of the WNS series boiler adopts a corrugated design, which not only enhances the structural strength of the boiler but also increases flue gas turbulence, thereby improving heat transfer efficiency. The WNS series boiler is equipped with an excellent combustion system and advanced burners, enabling the efficient combustion of various fuels such as natural gas and diesel. This results in significantly reduced pollutant emissions, meeting environmental standards. Additionally, the WNS series boiler is compact in design, easy to install, and simple to operate, with a fully automated control system that enables intelligent, unattended operation.

Features of WNS Series Three Pass Fire Tube Boiler

High-Efficiency Design: The WNS series three pass fire tube boiler utilizes three-pass heat exchange technology to maximize thermal efficiency, significantly reducing energy consumption.

Compact Structure & Convenient Installation: The WNS series boiler features a compact design with a small footprint, making it easy to install and maintain. It saves space and reduces on-site construction costs.

Intelligent Control System: Equipped with an advanced automated control system, the boiler provides full monitoring to ensure efficient, stable, and safe operation, reducing the need for manual intervention.

Excellent Environmental Performance: The boiler uses advanced combustion technology and flue gas treatment systems to reduce pollutant emissions, complying with both domestic and international environmental standards, offering users a green and efficient energy solution.

Specification of WNS Series Three Pass Fire Tube Boiler

Model	Rated steam capacity (t/h)	Rated working pressure (MPa)	Rated steam temperature (℃)	Feed water temperature (℃)	Maximum transport weight (t)	Maximum transport dimension (m)
WNS1-0.7-Q(Y)	1	0.7	170	20	4.5	3.25×1.80×2.00
WNS1-1.0-Q(Y)	1	1.0	184	20	4.5	3.25×1.80×2.00
WNS1.5-1.0-Q(Y)	1.5	1.0	184	20	7.0	3.65×2.05×2.45
WNS1.5-1.25-Q(Y)	1.5	1.25	194	20	7.0	3.65×2.05×2.45
WNS2-1.0-Q(Y)	2	1.0	184	20	9.0	4.60×2.20×2.60
WNS2-1.25-Q(Y)	2	1.25	194	20	9.0	4.60×2.20×2.60
WNS3-1.0-Q(Y)	3	1.0	184	20	11.5	5.35×2.40×2.80
WNS3-1.25-Q(Y)	3	1.25	194	20	11.5	5.35×2.40×2.80
WNS4-1.25-Q(Y)	4	1.25	194	20	15.0	5.00×2.60×2.95
WNS4-1.6-Q(Y)	4	1.6	204	20	15.0	5.00×2.60×2.95
WNS5-1.25-Q(Y)	5	1.25	194	20	18.0	5.55×2.658×3.20
WNS5-1.6-Q(Y)	5	1.6	204	20	18.0	5.55×2.658×3.20
WNS6-1.25-Q(Y)	6	1.25	194	20	19.5	5.93×2.80×3.20
WNS6-1.6-Q(Y)	6	1.6	204	20	19.5	5.93×2.80×3.20
WNS8-1.25-Q(Y)	8	1.25	194	20	25.0	7.00×2.80×3.25
WNS8-1.6-Q(Y)	8	1.6	204	20	25.0	7.00×2.80×3.25
WNS10-1.25-Q(Y)	10	1.25	194	104	27.5	7.65×2.80×3.25
WNS10-1.6-Q(Y)	10	1.6	204	104	27.5	7.65×2.80×3.25
WNS15-1.25-Q(Y)	15	1.25	194	104	40.0	7.95×3.50×3.75
WNS15-1.6-Q(Y)	15	1.6	204	104	40.0	7.95×3.50×3.75
WNS20-1.25-Q(Y)	20	1.25	194	104	52.0	8.55×3.90×4.15
WNS20-1.6-Q(Y)	20	1.6	204	104	52.0	8.55×3.90×4.15
