| Product thermal capacity: | 1-20 t/h |
| Working pressure: | 0.7-2 MPa |
| Available fuel: | Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc. |
| Available industries: | Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc. |

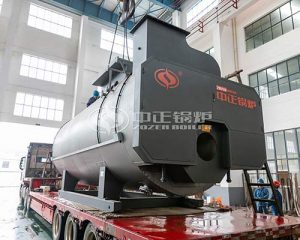

Introduction of WNS series 6 Ton Gas Boiler
Features of WNS series 6 Ton Gas Boiler
High Efficiency and Energy Saving: The WNS series 6 ton gas boiler uses advanced combustion technology and design to achieve high thermal efficiency, effectively reducing energy consumption and operating costs.
Safety and Reliability: Equipped with comprehensive safety protection devices, the intelligent control system enables automatic monitoring and control, ensuring safe and stable operation and safeguarding both equipment and personnel.
Compact Design: The compact structure design reduces floor space requirements, making it suitable for various industrial settings with limited space. It is easy to install and flexible, improving the boiler’s applicability and adaptability.
Durable and Stable: Made with high-quality materials and advanced manufacturing techniques, the WNS series 6 ton gas boiler offers excellent durability and stability. It operates reliably for long periods, reducing maintenance costs and extending the lifespan of the equipment.
Specification of WNS series 6 Ton Gas Boiler
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Maximum transport weight (t) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1.0 | 184 | 20 | 4.5 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1.0 | 184 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 20 | 7.0 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1.0 | 184 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 20 | 9.0 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1.0 | 184 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 20 | 11.5 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 20 | 15.0 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 20 | 18.0 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 20 | 19.5 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 20 | 25.0 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 104 | 27.5 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 104 | 40.0 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 104 | 52.0 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 104 | 52.0 | 8.55×3.90×4.15 |
