| Product thermal capacity: | 1-20 t/h |
| Working pressure: | 0.7-2 MPa |
| Available fuel: | Natural gas, coke oven gas, biogas, diesel, heavy oil, light oil, crude oil, etc. |
| Available industries: | Heat supplying, chemical, food, textile, printing and dyeing, cigarettes and tobacco, fodder, pharmacy, building materials, brewery, rubber, hospital etc. |

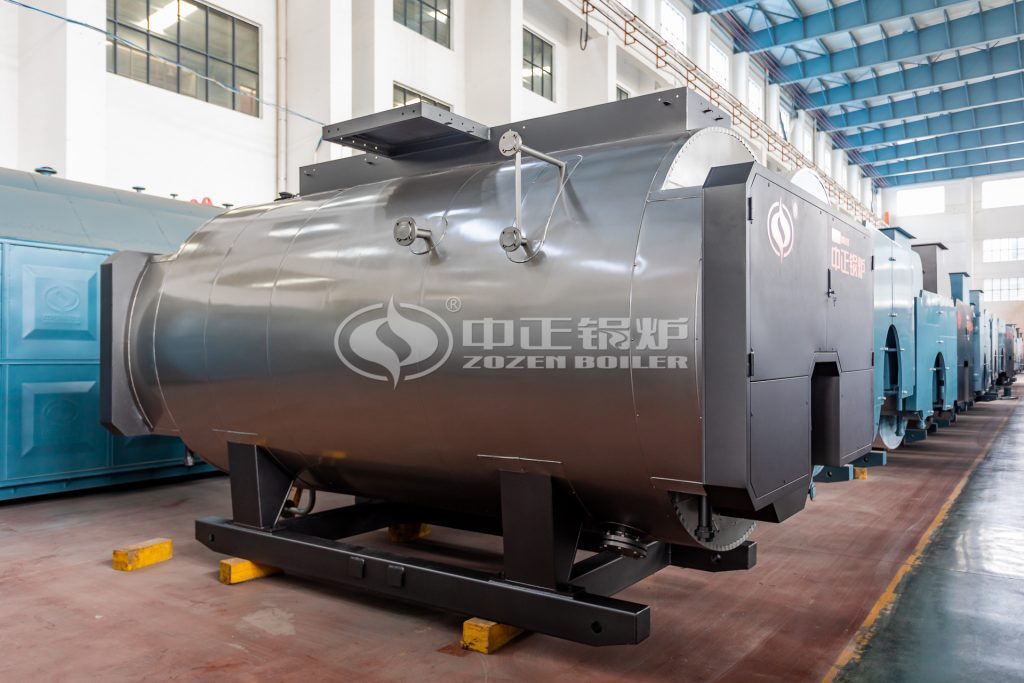

Introduction of 3 Ton Steam Boilers
ZOZEN WNS series 3 ton steam boilers are three-pass wetback oil/gas-fired boilers. After the fuel is atomized by the burner, the flame fills the corrugated furnace and transfers heat through the furnace wall—this constitutes the first pass. The high-temperature flue gas is then collected in the reversal chamber and enters the second pass, where it flows through the grooved tube bundle area. After convective heat transfer, the flue gas temperature gradually decreases as it moves to the front smoke box and turns into the third pass, flowing through the smooth tube bundle area before finally entering the chimney via the back smoke box and being exhausted into the atmosphere.
Features of 3 Ton Steam Boilersr
Fully Automatic and Safe Operation: Equipped with Boiler IoT technology, remote control capabilities, and expert management systems.
High Thermal Efficiency ≥98%: Corrugated furnace and threaded smoke tubes enhance heat transfer efficiency, while the economizer and condenser significantly lower flue gas temperatures.
Easy Maintenance: Advanced control systems allow for unattended and user-friendly operation.
Eco-Friendly and Efficient: Low-NOx burners combined with advanced low-nitrogen combustion technology ensure NOx emissions ≤30mg/Nm³.
Specification of 3 Ton Steam Boilers
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Maximum transport dimension (m) |
| WNS1-0.7-Q(Y) | 1 | 0.7 | 170 | 3.25×1.80×2.00 |
| WNS1-1.0-Q(Y) | 1 | 1 | 184 | 3.25×1.80×2.00 |
| WNS1.5-1.0-Q(Y) | 1.5 | 1 | 184 | 3.65×2.05×2.45 |
| WNS1.5-1.25-Q(Y) | 1.5 | 1.25 | 194 | 3.65×2.05×2.45 |
| WNS2-1.0-Q(Y) | 2 | 1 | 184 | 4.60×2.20×2.60 |
| WNS2-1.25-Q(Y) | 2 | 1.25 | 194 | 4.60×2.20×2.60 |
| WNS3-1.0-Q(Y) | 3 | 1 | 184 | 5.35×2.40×2.80 |
| WNS3-1.25-Q(Y) | 3 | 1.25 | 194 | 5.35×2.40×2.80 |
| WNS4-1.25-Q(Y) | 4 | 1.25 | 194 | 5.00×2.60×2.95 |
| WNS4-1.6-Q(Y) | 4 | 1.6 | 204 | 5.00×2.60×2.95 |
| WNS5-1.25-Q(Y) | 5 | 1.25 | 194 | 5.55×2.658×3.20 |
| WNS5-1.6-Q(Y) | 5 | 1.6 | 204 | 5.55×2.658×3.20 |
| WNS6-1.25-Q(Y) | 6 | 1.25 | 194 | 5.93×2.80×3.20 |
| WNS6-1.6-Q(Y) | 6 | 1.6 | 204 | 5.93×2.80×3.20 |
| WNS8-1.25-Q(Y) | 8 | 1.25 | 194 | 7.00×2.80×3.25 |
| WNS8-1.6-Q(Y) | 8 | 1.6 | 204 | 7.00×2.80×3.25 |
| WNS10-1.25-Q(Y) | 10 | 1.25 | 194 | 7.65×2.80×3.25 |
| WNS10-1.6-Q(Y) | 10 | 1.6 | 204 | 7.65×2.80×3.25 |
| WNS15-1.25-Q(Y) | 15 | 1.25 | 194 | 7.95×3.50×3.75 |
| WNS15-1.6-Q(Y) | 15 | 1.6 | 204 | 7.95×3.50×3.75 |
| WNS20-1.25-Q(Y) | 20 | 1.25 | 194 | 8.55×3.90×4.15 |
| WNS20-1.6-Q(Y) | 20 | 1.6 | 204 | 8.55×3.90×4.15 |
