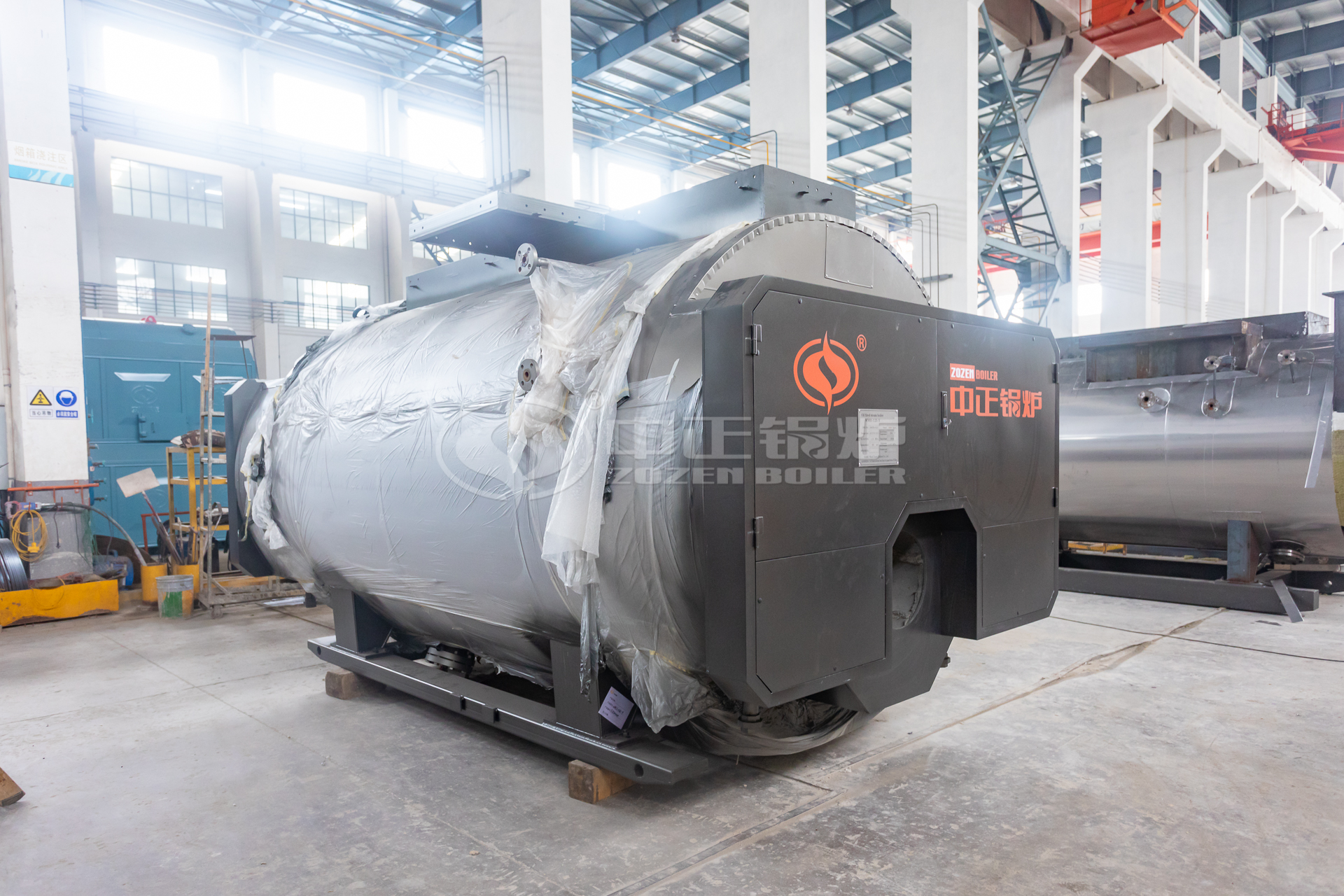

The horizontal oil fired steam boiler adopts horizontal three-return wet back structure, which improves the operating environment of the boiler and improves its efficiency and service life. All flue gas channels are placed in water, and the tail is equipped with waste heat tank and perfect heat preservation outsourcing design. The smoke box is sealed with labyrinth structure to avoid the smoke box leakage phenomenon.
This series of steam boilers have a thermal efficiency of over 90% and adopt a combination of corrugated furnace and conical furnace with good expansion performance. The size of the furnace bladder is consistent with that of the flame, and the flue gas circulation area is reduced. Make the flue gas flow with equal velocity, ensure the heat exchange time of high-temperature flue gas in the furnace, and achieve the best heat transfer effect.
The horizontal oil fired boiler adopts the high performance burner which is matched with the boiler completely, and carries on the comprehensive automatic adjustment, makes the combustion full, saves the fuel and reduces the pollution. The ultra-fine glass wool with high thermal insulation performance has less heat dissipation loss. Intelligent energy saving control system is adopted to control the boiler and steam supply (water supply) system, and fuel supply is adjusted according to different loads to be more energy saving.
The installation mode of this series of industrial boilers is integrated quick installation boiler, with small vibration, no special requirements for foundation, no anchor bolts, easy installation. Horizontal oil fired steam boiler adopts movable furnace head structure, which can match various burners, replace the furnace head, and maintain the furnace body conveniently and quickly. The front and rear smoke box adopts movable detachable structure, which is convenient for inspecting, maintaining and maintaining the boiler interior. It is simple and convenient, with novel product design, reasonable structure and good process performance. It makes the product have outstanding quality and is a newly developed new product.
ZOZEN Boiler manufacturing of horizontal oil burning boiler is equipped with multiple interlocking protection. For example, pressure switch protection (above the set pressure automatically stop and alarm), low water level protection (the water level in the boiler body is lower than the warning level, automatically cut off the power and alarm), safety valve protection (the boiler pressure exceeds the working pressure, automatically deflate pressure), to ensure that the boiler is safe in various working conditions, safe home. Welcome to consult purchasing.
